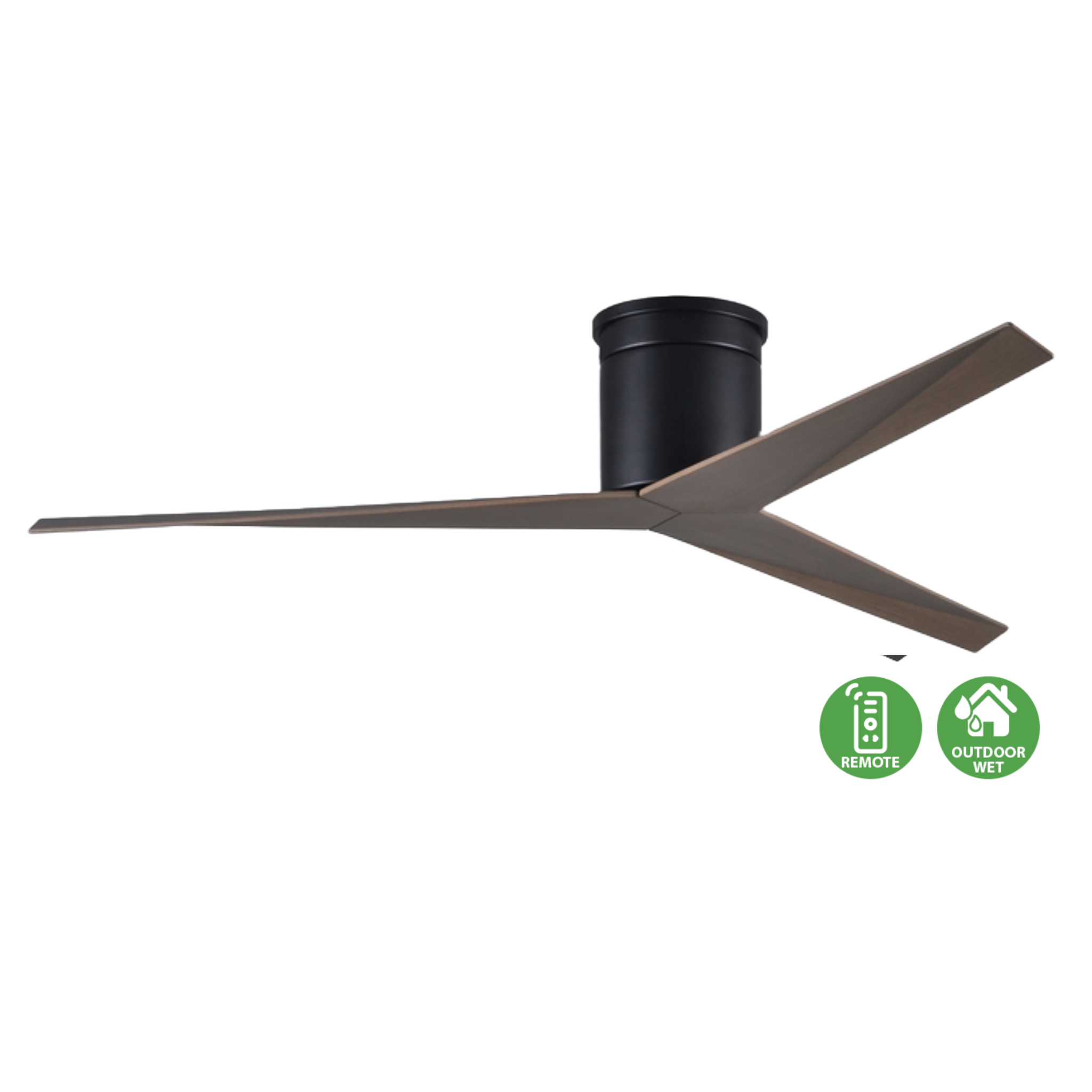

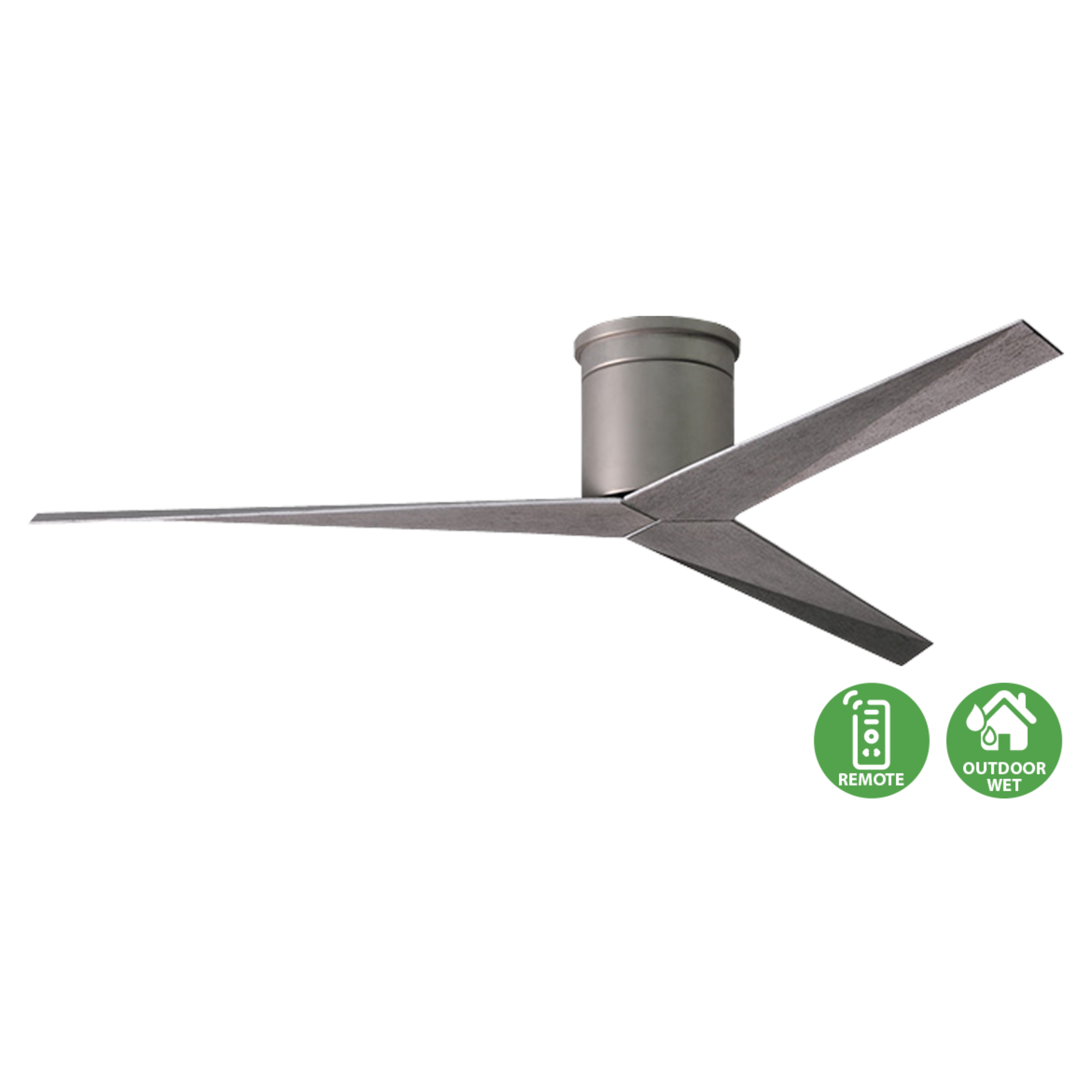

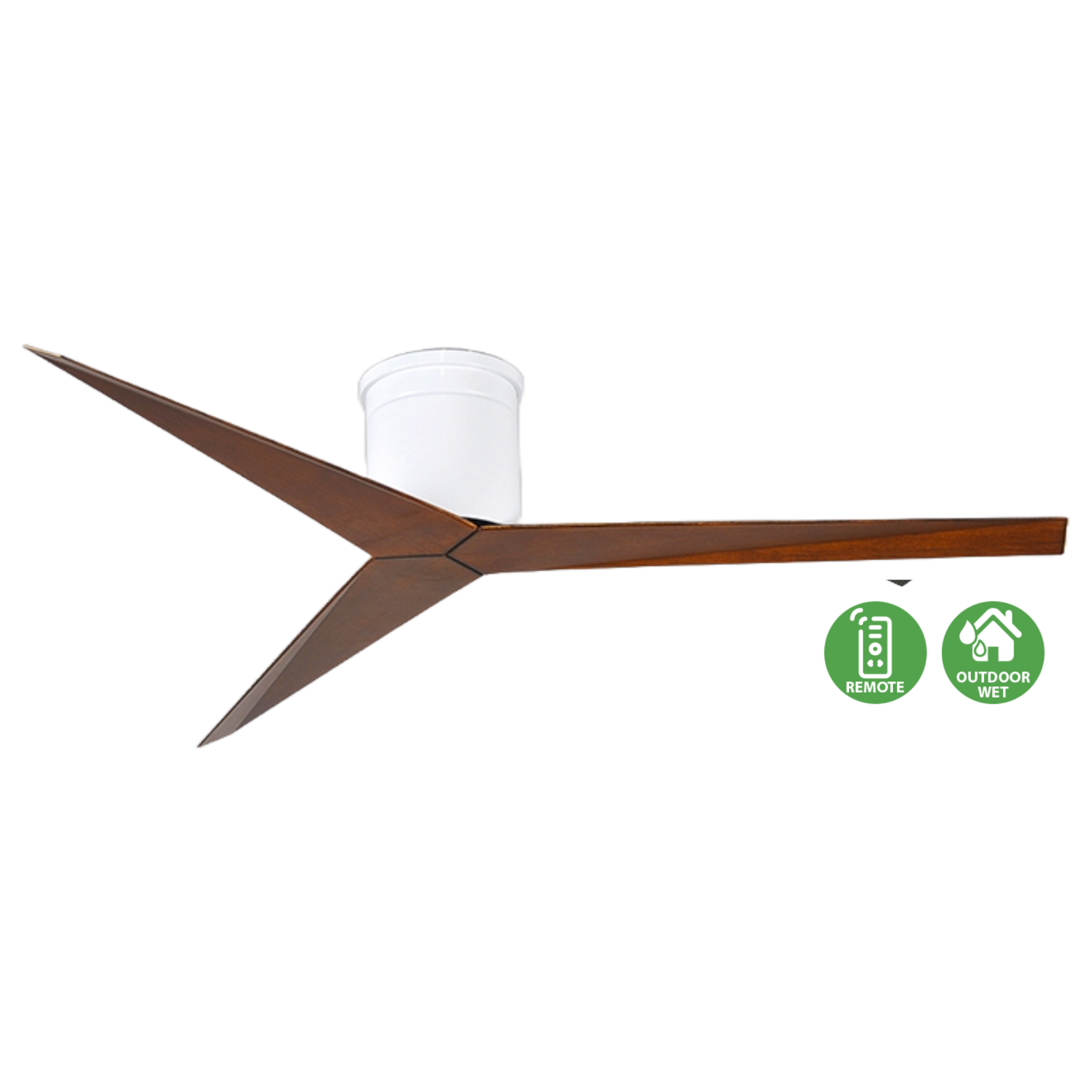

Designed by architect Stephen Katz from Chicago in 2014, the Eliza Hugger ceiling fan combines aesthetically pleasing design with superior performance. Its unique blade design is specifically crafted to enhance air circulation along the outer edges of the blades. The result is more efficient airflow, minimal blade friction, and optimal motor performance. Additionally, Eliza features an attractive visual appearance with modern style and minimalist geometry. The cylindrical motor cover is suitable for low ceilings with a minimum height of 8" (240 cm).
Here are the specifications:
| Brand : |
Atlas |
| Installation Environment : |
Outdoor Coastal
|
Installation :
|
Ceiling |
| Blade Pitch : |
N27 |
| Voltage : |
220V |
| Hertz : |
50 Hz |
| Max Watt : |
33.49 |
| Max RPM : |
175
|
| Airflow (m3/min) : |
4034 cfm/114.23 m3/min |
| Motor Type : |
DC |
| Motor Material : |
Metal |
| Control Type : |
Remote Control |
| Blades Material : |
Wood |
| Include Blades : |
Yes |
| Reverse Function : |
Yes |
| Fan Diameter : |
56" / 142 cm |
| Downrod Diameter : |
N/A |
| Weight ( kg ) : |
7.5 |
| Box Dimension ( cm ) : |
75 cm x 28 cm x 24 cm |
| Light Kit : |
Not Available |
| Service Warranty |
1 Year |
| Elektronic/ parts Warranty : |
1 Year |
| Motor Warranty : |
5 Year |
| Accesoriess Option : |
N/A
|
|
|
