The Big Ass Fans Powerfoil X4 is a premium HVLS (High Volume Low Speed) ceiling fan engineered to deliver exceptional airflow, energy efficiency, and long-term reliability for demanding industrial and commercial environments. Designed for warehouses, manufacturing facilities, logistics centres, distribution hubs, aircraft hangars, sports venues, and large commercial buildings, the Powerfoil X4 combines advanced aerodynamic engineering with a robust direct-drive motor to maximise comfort while reducing energy consumption.
Featuring four precision-engineered airfoils, a high-performance direct-drive motor, and intelligent control options, the Powerfoil X4 generates powerful airflow to reduce heat stratification, eliminate stagnant air, and improve occupant comfort across large spaces. Its industrial-grade construction and patented airfoil technology provide dependable operation with minimal maintenance, making it an ideal solution for facilities requiring continuous, efficient air movement.
Designed for large-scale industrial and commercial applications, the Big Ass Fans Powerfoil X4 helps improve workplace comfort, supports HVAC efficiency, and reduces operating costs through intelligent air circulation. Fantastik Asia supplies genuine Big Ass Fans Powerfoil X4 HVLS ceiling fans in Indonesia with technical support, airflow modelling, and project consultation.
Specifications :
| Brandk : |
Big Ass Fans |
|
Blade Materials :
|
Aluminium Alloy |
| Motor Materials : |
Powder-Coated Steel |
| Mounting : |
Ceiling |
| Diameter : |
12 ft / 3.6 meter
14 ft / 4.3 meter
16 ft / 4.9 meter
18 ft / 5.5 meter
20 ft / 6.1 meter
24 ft / 7.3 meter
30 ft / 9.1 meter
|
| Control Type : |

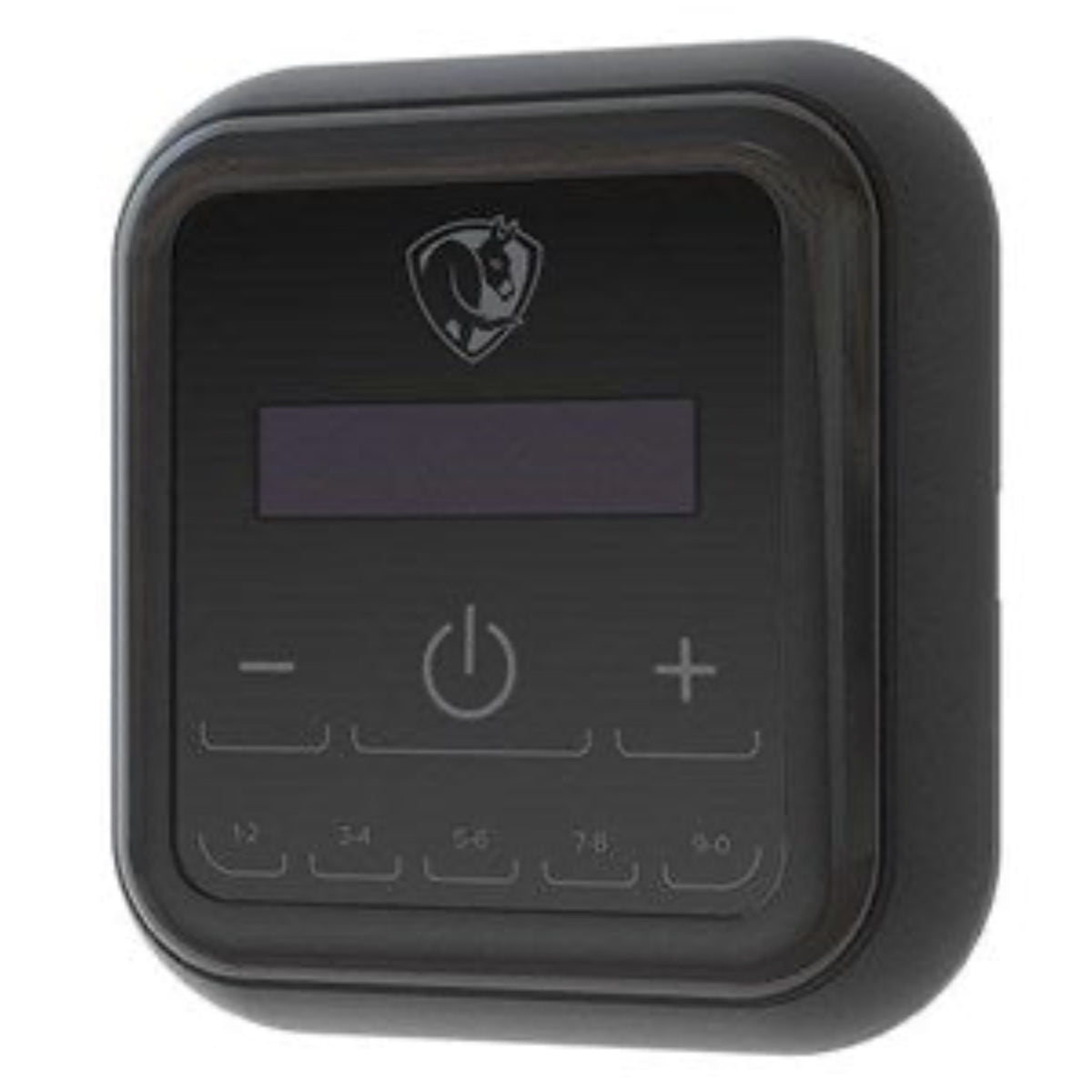

Standard Wired Touchscreen Controller Included |
| Includes Down Tube : |
Includes Extension Tube & Beam Mount |
| Weight : |
12 ft / 3.6 m = 111 kg
14 ft / 4.3 m = 115 kg
16 ft / 4.9 m = 120 kg
18 ft / 5.5 m = 127 kg
20 ft / 6.1 m = 132 kg
24 ft / 7.3 m = 157 kg
30 ft / 9.1 m = 179 kg
|
| Motor Type : |
Motor Induksi dengan NitroSeal™ Gearbox (STÖBER® Helical Gear Drive) |
| Noise Level: |
<55 dBA |
| IP Rating : |
IP56 |
| Max Speed: |
12 ft = 130 RPM
14 ft = 116 RPM
16 ft = 96 RPM
18 ft = 90 RPM
20 ft = 76 RPM
24 ft = 62 RPM
30 ft = 46 RPM
|
| Input Power and Required Circuit Breaker : |
200–240 VAC, 50/60 Hz, 1 Φ, 20 A
200–240 VAC, 50/60 Hz, 3 Φ, 15 A
400–480 VAC, 50/60 Hz, 3 Φ, 10 A
575–600 VAC, 50/60 Hz, 3 Φ, 10 A
|
| Horsepower : |
1.9 hp (1.4 kW) (12–18 ft)
2.5 hp (1.85 kW) (20–30 ft) |
| Airfoil Clearance : |
Side clearance: 2 ft (0.6 m)
12–14 ft fans: 5 ft (1.5 m) below the ceiling
16 ft fan: 6 ft (1.8 m) below the ceiling
20 ft fan: 7 ft (2.1 m) below the ceiling
30 ft fan: 10 ft (3.0 m) below the ceiling
|
| Maximum Operating Temperature : |
50°C (122°F) |
| Warranty : |
5 Years |
| Technical Data Sheet |
Pdf |
