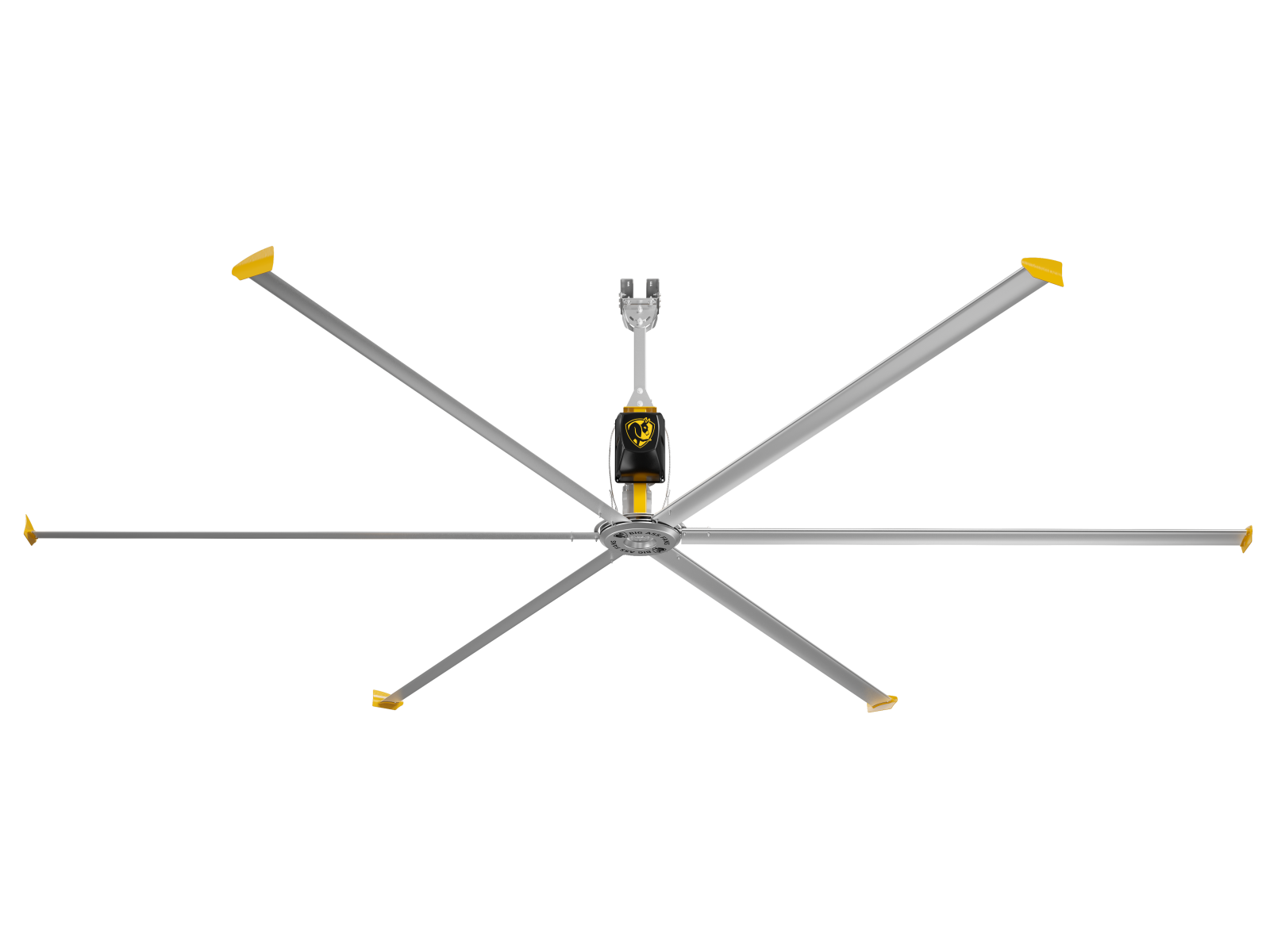

MADE TO MOVE AIR. PLAIN AND SIMPLE. Discomfort just lost its last place to hide. With Powerfoil® 6, it’s never been easier to bring powerful airflow to your space. This entry-level HVLS powerhouse arrives with pre-wired components, rugged construction, and bold Big Ass Fans branding. It’s not just a smarter investment—it’s a statement to your people that they come first.
KEY FEATURES Industry-leading, redundant safety features Six patented aluminum airfoils with winglets and integrated safety restraints Fully wired and factory tested for more reliable installs Digital variable speed controller with OLED screen Sealed helical gearbox and industrial motor for steady, quiet operation Branded hub and VFD covers Wide coverage improves energy efficiency and indoor air quality Versatile mounts on I-beams, bar joists, purlins, and more
| Merk : |
Big Ass Fans |
|
Bahan Daun Kipas :
|
Aluminium Alloy |
| Bahan Mesin : |
Baja yang Dilapisi Bubuk |
| Pemasangan : |
Di Plafon |
| Diameter : |
- 12ft / 3,7 meter
- 14 ft / 4,3 meter
- 16 ft / 4,9 meter
- 18 ft / 5,5 meter
- 20 ft / 6,1 meter
- 24 ft /7,3 meter
|
| Kontrol : |
Termasuk Kontrol |
| Termasuk Tiang Besi : |
Termasuk |
| Berat : |
- 12ft / 3,7 meter = 84 kg
- 14 ft / 4,3 meter = 88 kg
- 16 ft / 4,9 meter = 93 kg
- 18 ft / 5,5 meter = 96 kg
- 20 ft / 6,1 meter = 99 kg
- 24 ft /7,3 meter = 105 kg
|
| Jenis Motor : |
Kotak Gigi Heliks |
| Tingkat Kebisingan: |
N/A |
| IP Rating : |
55 |
| Kecepatan Maksimal : |
- 12ft / 3,7 meter =125 RPM
- 14 ft / 4,3 meter = 100 RPM
- 16 ft / 4,9 meter = 86 RPM
- 18 ft / 5,5 meter = 79 RPM
- 20 ft / 6,1 meter = 70 RPM
- 24 ft / 7,3 meter = 52 RPM
|
| Daya Masukan dan Pemutus yang Diperlukan : |
200–240 VAC, 50/60 Hz, 1 Φ, 20 A
200–240 VAC, 50/60 Hz, 3 Φ, 15 A
400–480 VAC, 50/60 Hz, 3 Φ, 10 A
|
| Tenaga Kuda : |
1.5 hp (1.1 kW) ke 2.0 hp (1.5 kW) |
| Celah Airfoil : |
- 2 ft (0.6 m) di sisi
- 5-7 ft (1.8 m) di bawah langit-langit
|
| Temperatur Operasi Maksimum : |
104°F (40°C) |
| Garansi : |
5 Tahun |
| Technical Data Sheet |
pdf |
