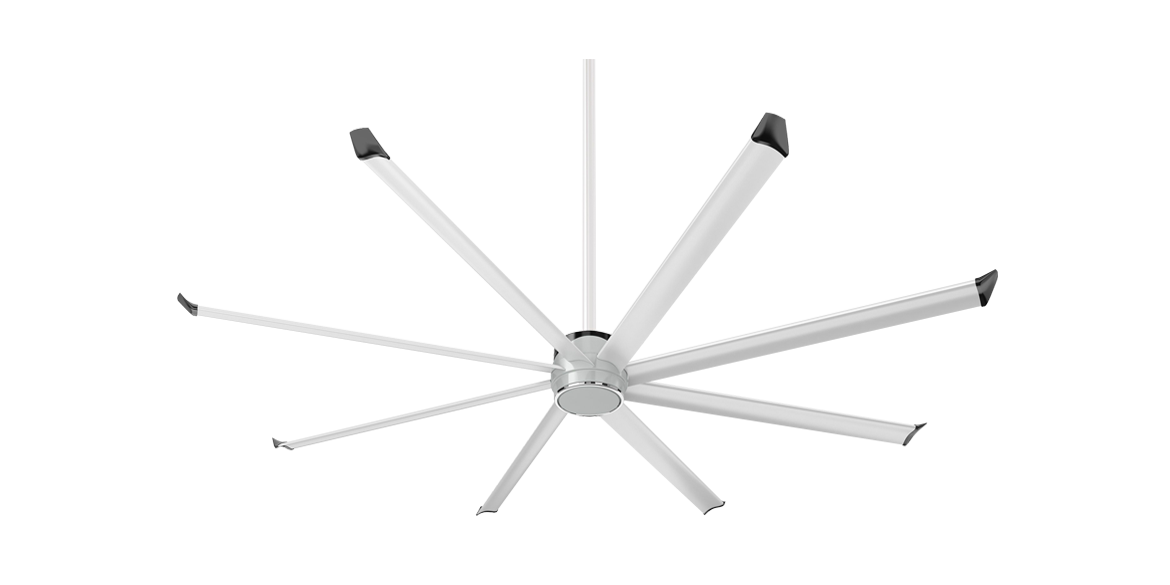

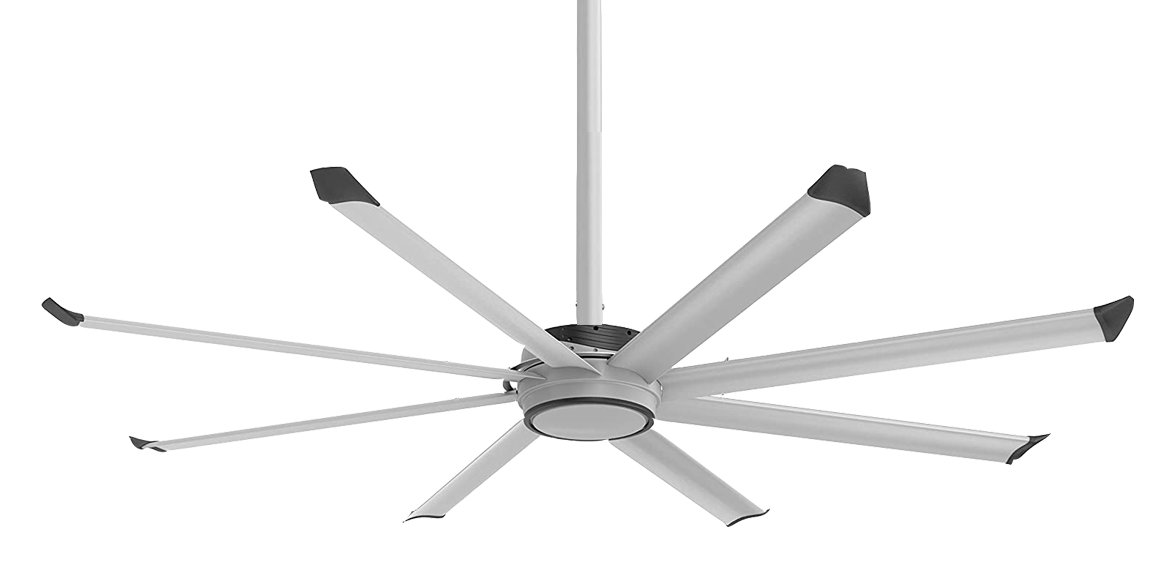

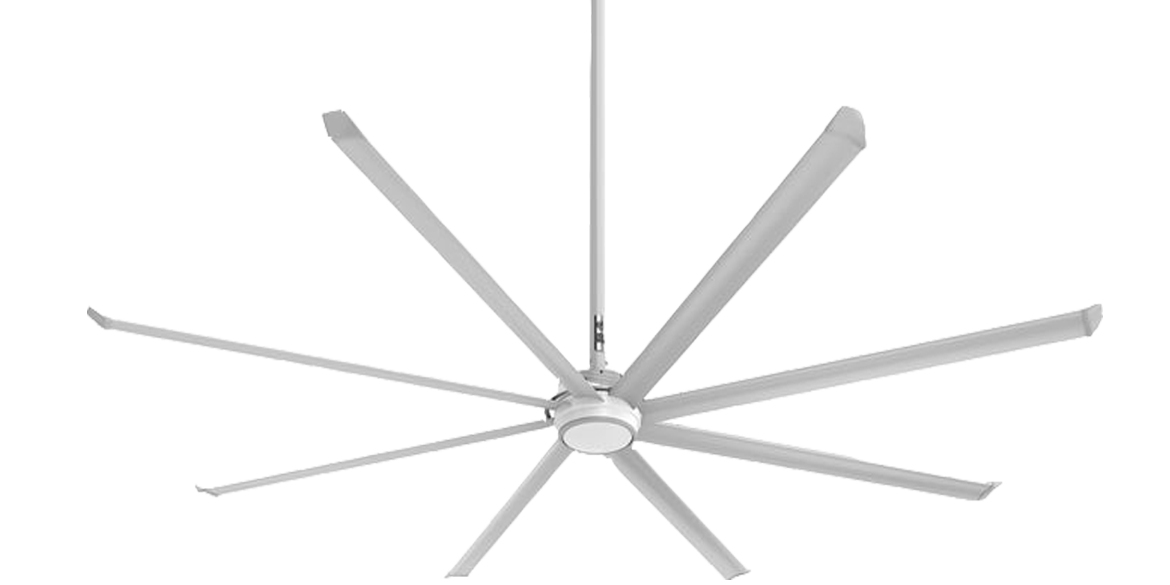

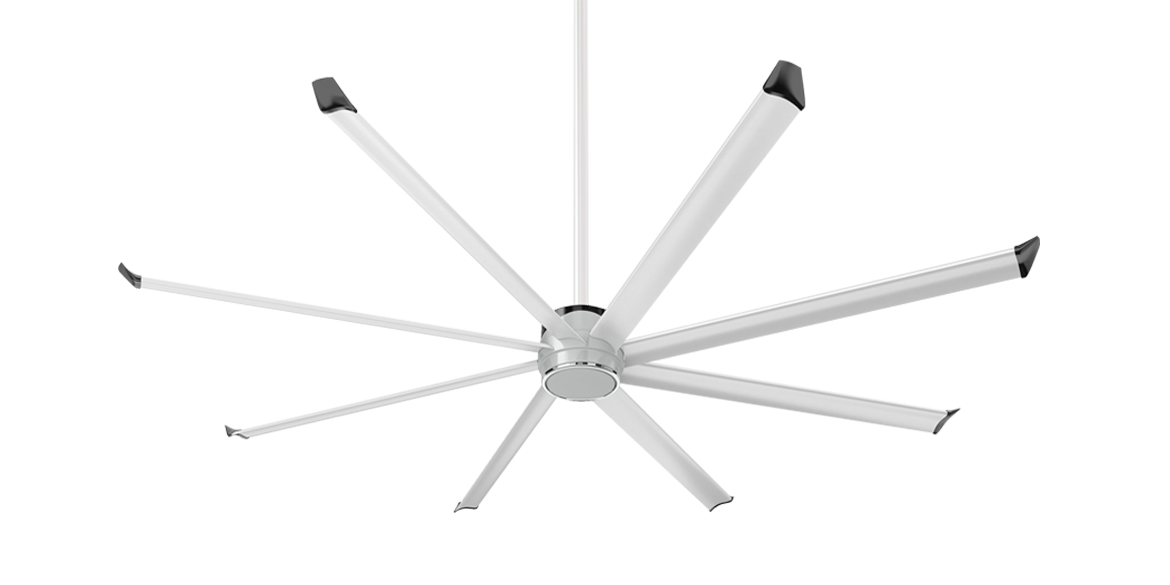

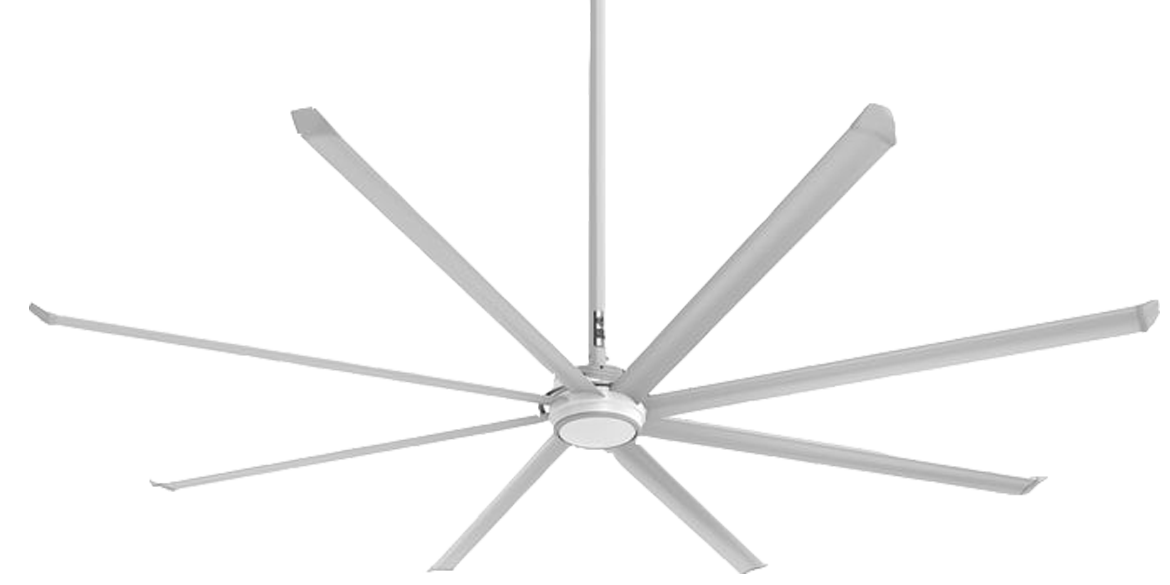

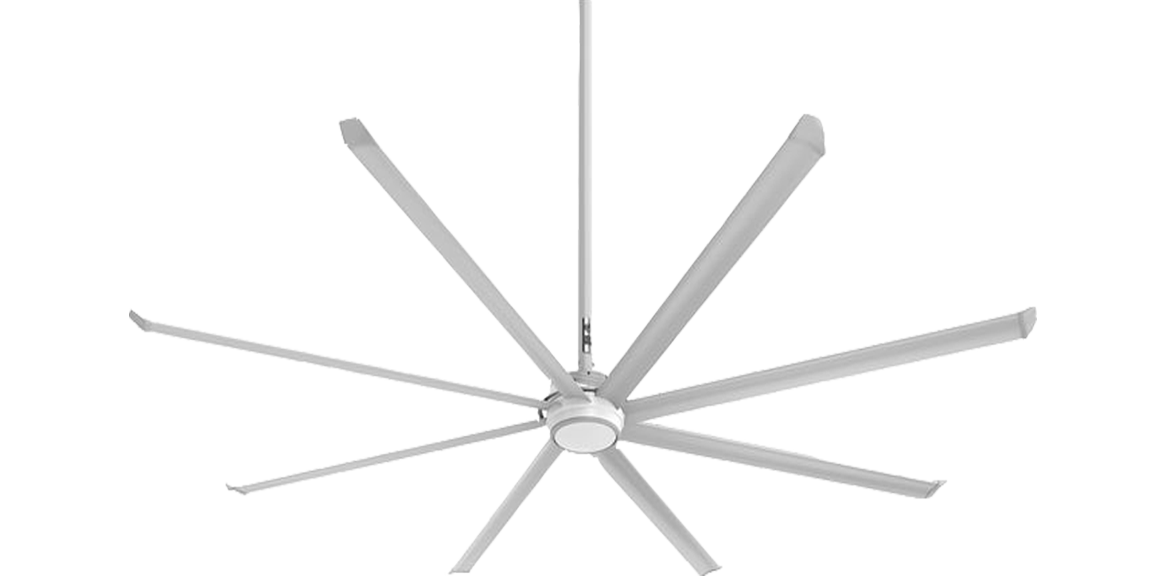

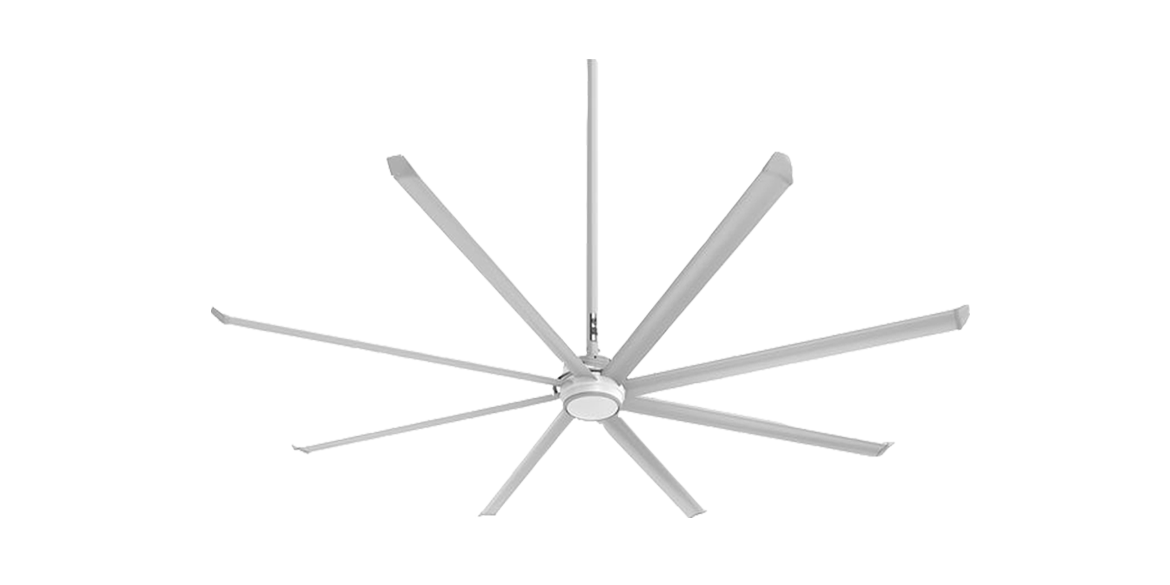

The first BigAss Fan fan developed to excel both indoors and outdoors, Essence provides the air movement needed in a wide range of spaces, from lobbies and clubs to theaters and alfresco dining areas.
- Airfoils and Winglets - Eight anodized Mini-Ellipto airfoils with winglets (black or silver)
- Gearless Direct Drive Motor - White or silver; Permanent magnet design reduces power consumption
- Extension Tubes - Standard 2 ft (0.6 m); optional 3 to 15 ft (0.9 to 4.6 m).
- Controls - Wired wall controls mount in a standard single-gang junction box or to the wall surface; connected with a CAT5 10V cable
- Environment - Suitable for indoor and outdoor spaces1
- Accessories - Wireless RF wall controller and Essence LED
- Color - The standard color options for Essence are silver and black. Want something different? Customize your Fan with one of our 11 classic color enhancements, or work with our design consultants to create the color you want
- Efficiency - Essence creates a cooling effect of up to 10°F (5.6°C), so you can raise your thermostat's set point and reduce air conditioning costs without sacrificing comfort. In winter, Essence gently compresses warm air trapped in the ceiling, resulting in savings of up to 30% on heating costs.
- Diameter : 8 ft (2.4 m), 10 ft (3 m), 12 ft (3.7 m), 14 ft (4.3 m)
- Weight : 8 ft (34 kg), 10 ft (37 kg), 12 ft (40 kg), 14 ft (44kg)
- Max RPM : 8 ft (158 RPM), 10 ft (107 RPM), 12 ft (76 RPM), 14 ft (56 RPM)
- Airfoil Clearances : 2 feet (0.6 m) on each side, 2 feet (0.6 m) below ceiling deck
- Sound at max speed : <35 dBA
See fan specifications here
